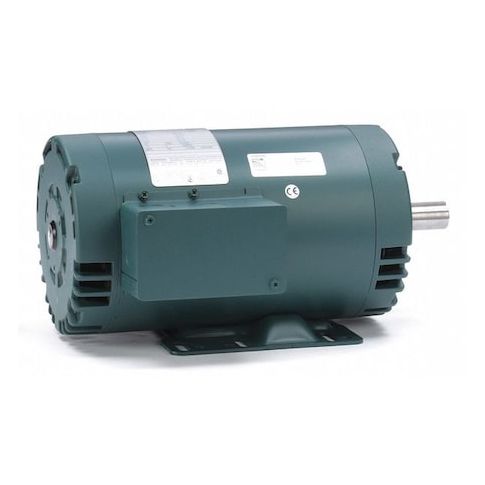

Three-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1745 rpm Nameplate RPM MPN:145TTDR6029
This 2 HP three-phase general purpose motor from Leeson is designed for a wide range of industrial applications, including manufacturing, pumping, and conveyor systems. With a nameplate RPM of 1745 and a rigid base motor mounting type, it provides reliable and efficient operation in demanding environments. The motor's open drip-proof enclosure design and ball bearings ensure durability and long lifespan, while its thermal protection and service factor of 1.15 provide added safety and flexibility. Suitable for continuous duty and available in a variety of voltages, this motor is an excellent choice for applications requiring high performance and reliability.
Top product features:
- Three-phase operation allows for efficient use of power in industrial settings.
- Open drip-proof motor enclosure design protects internal components from dust and debris.
- Ball motor bearings provide smooth and reliable operation under continuous duty.
Top product applications:
- Industrial Automation Systems
- Manufacturing Facilities
- Pumping Systems
The LEESON - 145TTDR6029 is a General Purpose Motor, falling under the category of 3-Phase AC Motors. This motor has potential use in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy for potential use in a variety of sectors including manufacturing lines and HVAC systems.
Key Features of the LEESON - 145TTDR6029 General Purpose Motor:
- CC Number: The unique identifier CC003A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: Its continuous duty cycle is intended for sustained operation in industrial applications.
- Frame: With a frame size of 145T, it conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: Has a maximum current draw of 5.8/2.9 A under full load conditions, indicating its power supply requirements.
- Certification: NEMA Premium(R) Rated certification acknowledges that this motor meets certain environmental and energy efficiency standards
- Inverter Rated: Intended for use with a variable frequency drive, which may provide control over speed & torque depending on the application
- Motor Thermal Protection: Includes built-in T-Stat feature that is designed to shut down the motor upon reaching specified temperatures as part of its design features.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 41.22
