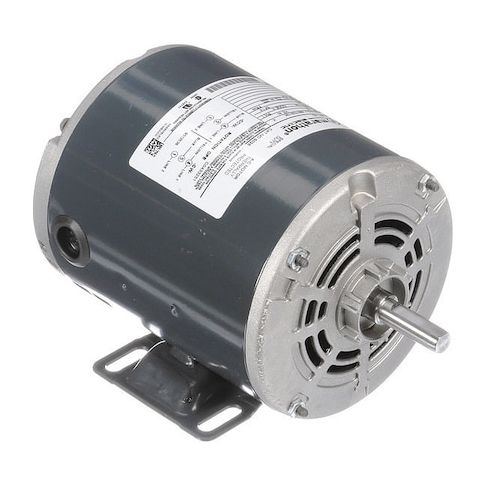

SP Motor, Split-Ph, 1/3 HP, 60 Hz MPN:048S17D2113
SP Motor, Split-Ph, 1/3 HP, 60 Hz
This 1/3 HP single-phase general-purpose motor from Leeson is designed for a variety of applications, including industrial equipment, pumps, and fans. Its split-phase design provides reliable operation and efficient energy usage. With a nameplate RPM of 1,725 and a continuous duty cycle, this motor is suitable for heavy use in environments up to 40°C. Its open drip-proof enclosure and rigid base mounting make it easy to integrate into existing systems. Available for immediate shipping, this motor is a cost-effective solution for a range of industrial applications, providing reliable performance and long service life.
Top product features:
- Split-Phase motor design for efficient operation
- Continuous duty cycle for reliable performance
- Open Drip Proof motor enclosure for protection against liquids and dust
Top product applications:
- Pump and fan applications
- Industrial machinery and equipment
- Conveyor systems and material handling equipment
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 6.6 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.06
- Package Width: 6.75
- Package Height: 6.62
- Package Weight: 14.00
Product info last updated on February 21, 2026 12:23pm UTC
Category: Motors
