Definite Purpose AC Motor, 5 hp MPN:056T34D5364

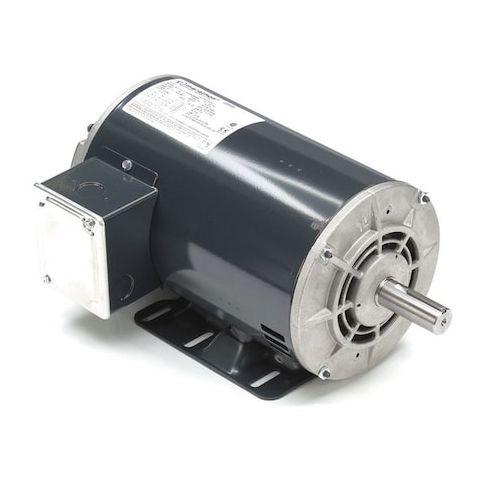

Definite Purpose AC Motor, 5 hp
This 5 hp three-phase AC motor from Leeson is designed for heavy-duty applications that require continuous operation. With a nameplate RPM of 3,450 and a motor service factor of 1, it can handle demanding tasks such as powering conveyor belts, pumps, and compressors. Its open drip-proof enclosure and rigid base make it easy to install and maintain. Suitable for use at 208-230/460V, this motor is ideal for industrial settings where reliability and efficiency are crucial. Its compact size and high power output make it a versatile choice for a wide range of applications.
Top product features:
- Three-Phase Design
- Operates at 3,450 RPM
- Open Drip Proof Enclosure Design
Top product applications:
- Pump
- Fan
- Conveyor
Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 13.5-12.4/6.2 A, 56HZ Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 50.00
Product info last updated on February 5, 2026 12:08pm UTC
Category: Motors
