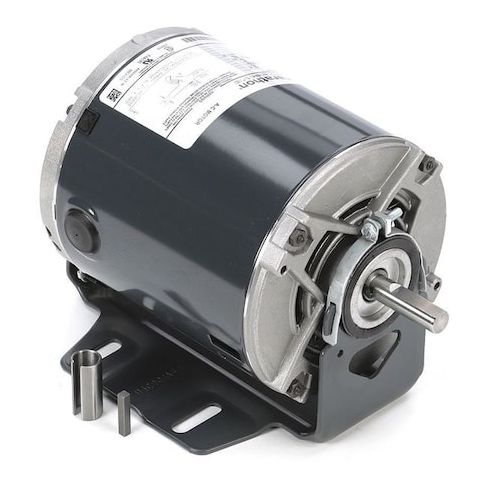

SP Motor, Split-Ph, 60 Hz, 1/3 HP MPN:5KH39QN5524
SP Motor, Split-Ph, 60 Hz, 1/3 HP
The Leeson SP Motor is a reliable and efficient solution for a wide range of applications, including industrial equipment, machinery, and commercial use. Its 1/3 horsepower rating and 1,725 RPM make it suitable for moderate-duty operations, while its 115V AC voltage and 6.2A full-load amps provide a stable and efficient power supply. With a continuous duty cycle and open drip-proof enclosure, this motor is designed to withstand harsh environments and provide years of reliable service. Ideal for use in factories, warehouses, and other industrial settings, the Leeson SP Motor is a cost-effective and dependable choice for any business or organization.
Top product features:
- Split-Phase motor design for efficient operation
- Single Phase, 60 Hz, 1/3 hp motor for general purpose use
- Continuous duty cycle for reliable operation in various applications
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 6.2 A, 56Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design None, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.69
- Package Width: 7.13
- Package Height: 7.50
- Package Weight: 15.00
Product info last updated on February 2, 2026 11:05am UTC
Category: Motors
