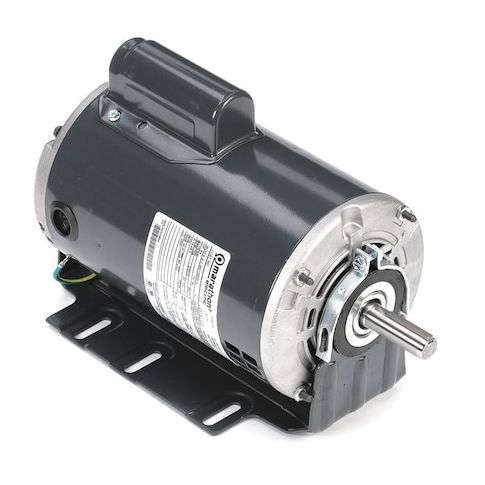

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56 Frame MPN:056C17D2061
Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56 Frame
The Leeson 3/4 hp Capacitor-Start General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/230V AC environments, this motor is ideal for commercial and industrial settings where a single-phase motor is required. With a nameplate RPM of 1,725 RPM, it provides consistent performance and can handle continuous duty cycles. The motor's open drip-proof design and cradle base mounting type make it easy to install and maintain. Perfect for use in applications such as pumps, fans, and conveyor systems, this motor is a cost-effective and dependable choice for any business or industry.
Top product features:
- Capacitor-start design for improved starting torque and efficiency
- Single-phase motor operation for simple installation and compatibility with existing systems
- Open drip-proof enclosure design for protection against dust and water spray
Top product applications:
- Industrial machinery such as conveyor belts and printing presses
- Pumps and other water treatment equipment
- Fans and blowers for commercial and industrial use
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.4/5.2 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.75
- Package Width: 7.88
- Package Height: 8.75
- Package Weight: 25.00
Product info last updated on February 10, 2026 11:03pm UTC
Category: Motors
