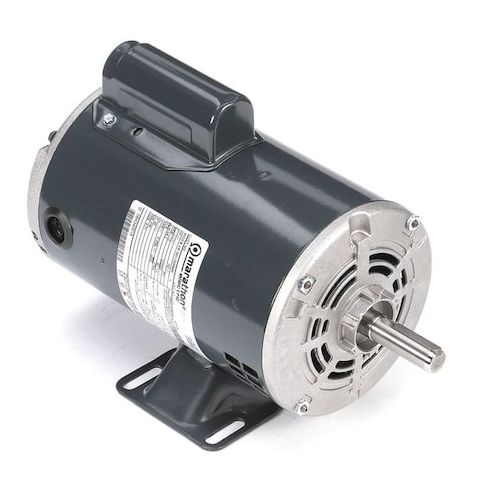

Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56 Frame MPN:056C17D2054
Capacitor-Start General Purpose Motor, 3/4 hp HP, 115/230V AC Voltage, 56 Frame
The Leeson Capacitor-Start General Purpose Motor is a reliable and efficient solution for various applications. Suitable for use in a range of environments, this motor operates at 1,725 RPM and features a 56 frame design. With a 3/4 hp horsepower rating and 115/230V AC voltage, it can handle demanding tasks with ease. The motor's open drip-proof enclosure and rigid base mounting make it ideal for use in industrial and commercial settings. Its continuous duty cycle and B insulation class ensure long-lasting performance, making it a great choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Capacitor-start design provides efficient starting and running performance
- Single phase operation allows for simple installation and control
- Open drip-proof enclosure design protects against dust and water intrusion
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.4/5.2 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.75
- Package Width: 7.88
- Package Height: 8.75
- Package Weight: 24.00
Product info last updated on March 4, 2026 3:57pm UTC
Category: Motors
