Three-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM MPN:145TTDR6133
Three-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM

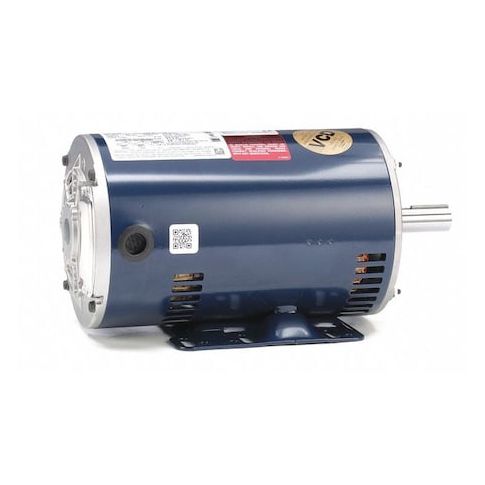

This 2 HP, 145T frame three-phase general purpose motor from Leeson is designed for a wide range of applications requiring reliable and efficient power. Suitable for continuous duty, it operates at 1750 rpm and is available in 230/460V AC voltage configurations. With a high service factor of 1.15 and auto thermal protection, this motor ensures optimal performance and longevity. Its open drip-proof enclosure design and rigid base mounting type make it easy to install and maintain. Ideal for use in industrial settings, this motor is CE, CSA, and UL recognized, making it a trusted choice for demanding applications.
Top product features:
- Three-Phase AC Voltage Capability
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Industrial Automation
- Manufacturing Processes
- Material Handling Equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1750 rpm, Frame 145T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 6.0/3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 47.00
Product info last updated on February 22, 2026 6:27am UTC
Category: Motors
