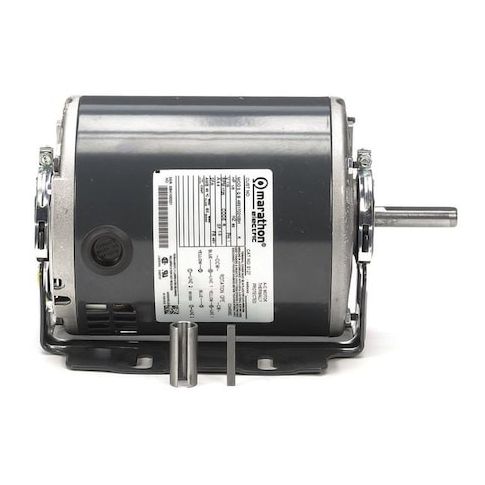

SP Motor, Split-Ph, 60 Hz, 1/3 HP MPN:048S17D2105
SP Motor, Split-Ph, 60 Hz, 1/3 HP
The Leeson SP Motor is a reliable and efficient general-purpose motor designed for single-phase applications. With a 1/3 HP rating and 1,725 RPM, it provides consistent performance in a variety of settings. Suitable for use in 115V AC environments, this motor is ideal for applications such as fans, pumps, and conveyor systems. Its open drip-proof design and CW/CCW rotation make it easy to integrate into existing systems. With a continuous duty cycle and thermal protection, this motor ensures reliable operation in temperatures up to 40°C, making it a great choice for a range of industrial and commercial applications.
Top product features:
- Split-Phase motor design for efficient power conversion
- Continuous duty cycle operation for reliable performance
- Open Drip Proof motor enclosure for protection against moisture and debris
Top product applications:
- Air Compressor
- Pumps
- Fans
General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 6.6 A, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.06
- Package Width: 6.75
- Package Height: 6.62
- Package Weight: 14.00
Product info last updated on January 31, 2026 8:55pm UTC
Category: Motors
