Capacitor-Start General Purpose Motor, 1/3 hp HP, 56C Frame, 115/230V AC Voltage MPN:101766.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G610080949

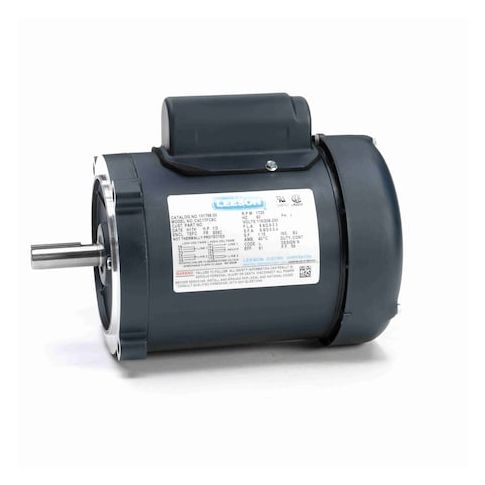

Capacitor-Start General Purpose Motor, 1/3 hp HP, 56C Frame, 115/230V AC Voltage
This 1/3 hp Capacitor-Start General Purpose Motor from Leeson is a reliable and efficient solution for a wide range of applications. Suitable for use in environments with temperatures up to 40 degrees Celsius, this motor can be used in continuous duty cycles, making it ideal for industrial and commercial settings. Its totally enclosed fan-cooled design ensures optimal performance and longevity. The motor's 1,725 RPM and 6.6/3.3 A full load amps make it suitable for applications such as pumps, fans, and conveyor systems, providing a cost-effective and durable solution for many industries.
Top product features:
- Capacitor-start design for improved motor efficiency
- Totally enclosed fan-cooled motor for reduced noise and increased durability
- Continuous duty cycle for reliable operation in high-demand applications
Top product applications:
- Pumps and water treatment systems
- Fans and blowers for industrial applications
- Conveyors and material handling systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.6/3.3 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CCWSE
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.10
- Package Width: 8.40
- Package Height: 9.10
- Package Weight: 16.05
- Restricted States: CA
Product info last updated on February 4, 2026 5:18am UTC
Category: Motors
