Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 208-230/460V Voltage, 1, 725 Nameplate RPM MPN:056T17F15949
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G608229695

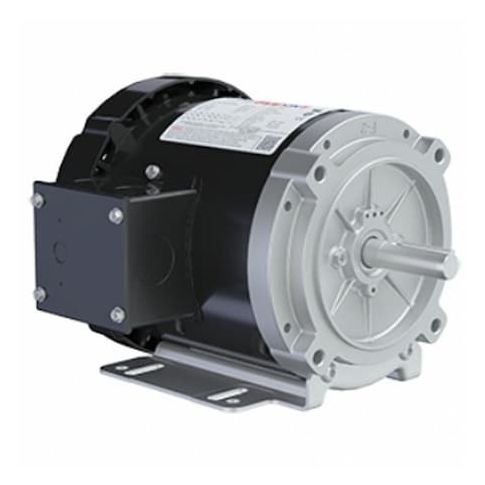

Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 208-230/460V Voltage, 1, 725 Nameplate RPM
This 1/3 HP three-phase general purpose motor from Leeson is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure design provides reliable operation in various environments, while its 1,725 nameplate RPM ensures efficient performance. The motor's ball bearings and steel frame ensure durability and long lifespan. Suitable for applications such as pumps, fans, and compressors, this motor offers high efficiency and low maintenance. With a service factor of 1.15 and a maximum ambient temperature of 40°C, it can handle demanding tasks with ease.
Top product features:
- Totally enclosed fan cooled motor enclosure design provides a safe and reliable operation in various environments.
- Ball motor bearings ensure smooth and quiet operation.
- CCW motor shaft rotation allows for easy integration with existing equipment.
Top product applications:
- Industrial Automation Systems
- Pumps and Pumping Systems
- Fans and Blowers
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 1,725, Frame 56C, Voltage 208-230/460V, 60 Hz Hz, Three Phase, Full Load Amps 1.8-1.6/0.80 A, Universal Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, 0-1,725, CE, CSA, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.12
- Package Width: 10.25
- Package Height: 8.12
- Package Weight: 20.00
Product info last updated on April 11, 2026 2:28am UTC
Category: Motors
