WashdownMotor, 3hp, 1745RPMTC, 230/460VAC MPN:194001.00
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G606626663
WashdownMotor, 3hp, 1745RPMTC, 230/460VAC

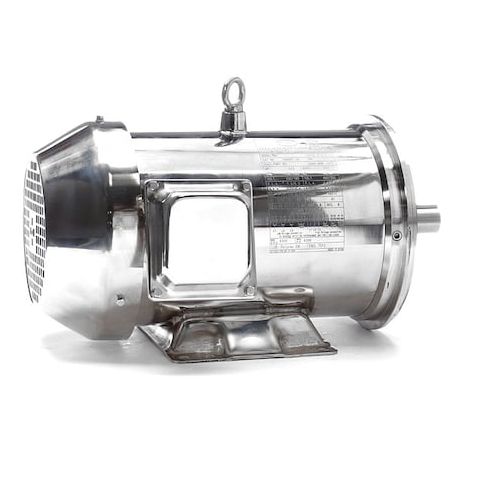

This 3hp washdown motor from Marathon is designed for heavy-duty use in harsh environments, with a totally enclosed fan-cooled design and a maximum ambient temperature of 40 degrees C. Suitable for continuous duty cycles, it can operate at 208V or 200V, making it versatile for various applications. The motor's 1.745 RPM and 7.2/3.6 amp rating ensure efficient performance, while its NEMA Design B and Class F insulation provide reliable operation. Ideal for use in food processing, pharmaceutical, and chemical industries, this motor is a durable and reliable choice for applications requiring high performance and low maintenance.
Top product features:
- Three-phase motor design
- Totally enclosed fan cooled design
- Continuous duty cycle
Top product applications:
- Pumps and water treatment systems
- Food processing equipment
- Automotive wash and detailing equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 7.2/3.6 A, 182TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.70
- Package Width: 14.40
- Package Height: 17.20
- Package Weight: 115.00
Product info last updated on March 4, 2026 9:20pm UTC
Category: Motors
