Capacitor-Start General Purpose Motor, 2 HP, 145TC Frame, 115/208-230V AC Voltage MPN:121465.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G602014952

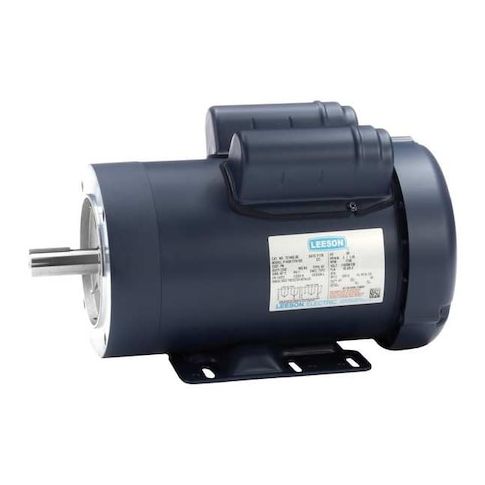

Capacitor-Start General Purpose Motor, 2 HP, 145TC Frame, 115/208-230V AC Voltage
This 2 HP Capacitor-Start General Purpose Motor from Leeson is designed for a wide range of applications, including industrial and commercial use. Its durable construction and bearing protection ensure reliable operation, while its compact size makes it easy to install in tight spaces. With a continuous duty cycle and a maximum ambient temperature of 104°F, this motor can handle demanding tasks with ease. Ideal for use in factories, warehouses, and other high-traffic areas, this motor provides efficient and reliable power for general applications, including conveyor systems, pumps, and other machinery.
Top product features:
- Bearing Protection Double Shield
- Inverter Rated No
- Includes Key
Top product applications:
- General Application
- General Purpose Motor
- Continuous Duty
General Purpose Motor, Bearing Protection Double Shield, Body Dia. 7.7 in, Bolt Circle Dia. 5 5/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Finish Enamel, Frame 145TC, Hz 60 Hz, Full Load Amps 18.4/9.2, Height 8 3/8 in, HP 2, Includes Key, Ins. Class B, Inverter Rated Not Inverter Rated, Inverter Rating No, Lead Length 6 in, Length Less Shaft 11 5/8 in, Manufacturers Warranty Length 18 mo, Max. Ambient Temp. 104 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 10.80
- Package Height: 11.70
- Package Weight: 45.50
Product info last updated on March 23, 2026 11:04pm UTC
Category: Motors
