Three-Phase Brake Motor, 3/4 hp HP, 56C Frame, 208-230/460V AC Voltage, 1, 725 RPM Nameplate RPM MPN:114155.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G602014822

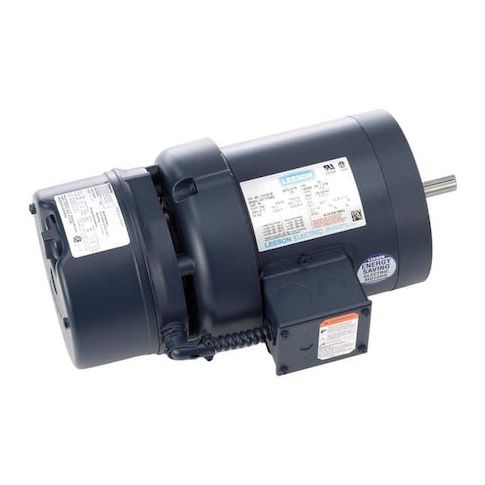

Three-Phase Brake Motor, 3/4 hp HP, 56C Frame, 208-230/460V AC Voltage, 1, 725 RPM Nameplate RPM
This three-phase brake motor is a reliable and efficient solution for various industrial applications. With a 3/4 hp rating and 1,725 RPM nameplate speed, it provides consistent performance in a range of settings. Suitable for use at 208V, this motor is ideal for applications that require a high level of control and precision, such as in material handling, packaging, and conveying systems. Its totally enclosed fan-cooled design and rigid base mounting ensure long-lasting operation in demanding environments. With a continuous duty cycle and 1.4A full-load amps, this motor is a valuable addition to any industrial facility.
Top product features:
- Totally Enclosed Fan Cooled design provides protection from dust and moisture
- Continuous duty cycle allows for uninterrupted operation
- Usable at 208V voltage rating provides flexibility in installation and operation
Top product applications:
- Pump and fluid handling equipment
- Conveyor systems
- Industrial laundry equipment
Brake Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.4 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.90
- Package Width: 10.90
- Package Height: 11.70
- Package Weight: 32.70
