WashdownMotor, 2hp, 1745RPM, 90L, 230/460VAC MPN:119509.00
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G600722958

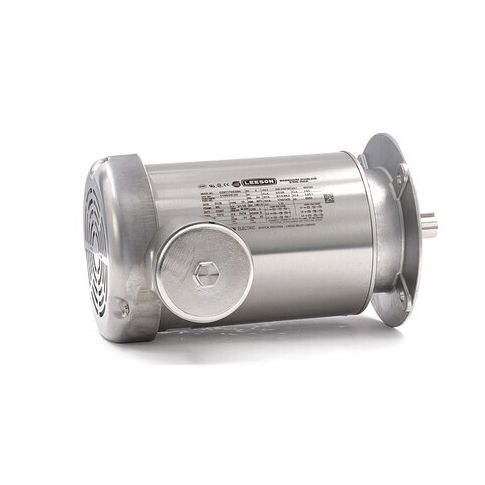

WashdownMotor, 2hp, 1745RPM, 90L, 230/460VAC
This 2hp washdown motor from Leeson is designed for high-humidity environments and features a totally enclosed fan-cooled design to ensure maximum efficiency and reliability. Suitable for use in food processing, pharmaceutical, and other sanitary applications, this motor operates at 1745 RPM and can withstand temperatures up to 40 degrees C. Its 90L frame and three-phase design make it a versatile option for a variety of applications, including pumps, mixers, and conveyor systems. With a motor service factor of 1.2 and continuous duty cycle, this motor provides long-lasting performance and minimal maintenance requirements.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reduced maintenance
- Continuous Duty Cycle capability for consistent and reliable operation
- Removable Base for easy installation and maintenance access
Top product applications:
- Washdown pumps and systems
- High-pressure washdown equipment
- Food processing and manufacturing equipment
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 90L Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.2, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base Yes, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.38
- Package Width: 12.38
- Package Height: 10.75
- Package Weight: 73.00
Product info last updated on February 11, 2026 1:03am UTC
Category: Motors
