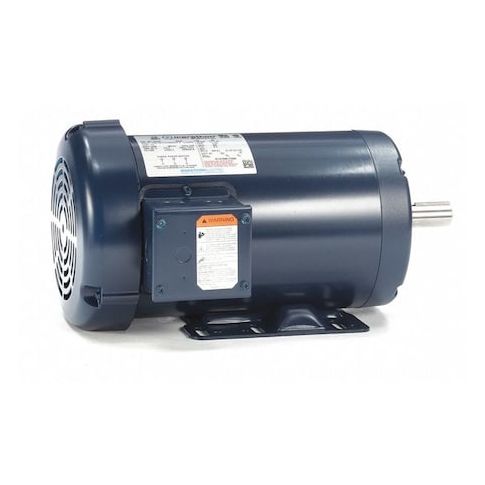

Three-Phase General Purpose Motor, 2 HP, 145T Frame, 200V AC Voltage, 1750 rpm Nameplate RPM MPN:145TTFR16039
Three-Phase General Purpose Motor, 2 HP, 145T Frame, 200V AC Voltage, 1750 rpm Nameplate RPM
Power your industrial operations with the Leeson 2 HP Three-Phase General Purpose Motor, designed for continuous duty and maximum efficiency. This rugged motor features a totally enclosed fan cooled design, steel frame, and ball bearings for reliable performance in demanding environments. With a high service factor of 1.15, it can handle peak loads with ease. Suitable for a wide range of applications, including manufacturing, material handling, and HVAC systems, this motor delivers 1750 rpm at 200V AC and 6.3 A full load amps. Its compact size and CE, CSA, and UL recognition make it an ideal choice for industrial installations.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure design for reliable cooling and reduced maintenance
- Ball motor bearings for smooth and durable operation
Top product applications:
- Industrial Automation
- Manufacturing Equipment
- Pumping Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1750 rpm, Frame 145T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 6.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 49.00
Product info last updated on April 10, 2026 5:46pm UTC
Category: Motors
