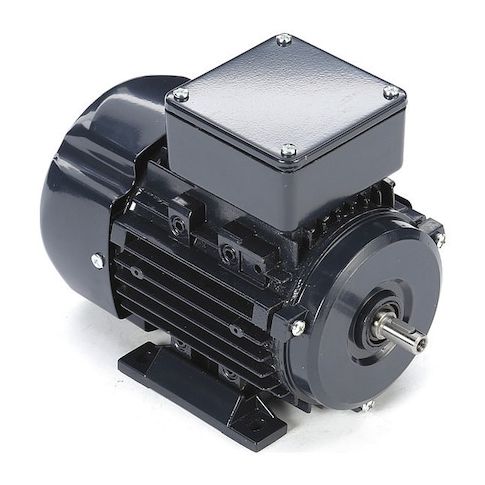

Three-Phase General Purpose Motor, 1/4 HP, 63 Frame, 230/460V AC Voltage, 1700 rpm Nameplate RPM MPN:063T17FH5326
Three-Phase General Purpose Motor, 1/4 HP, 63 Frame, 230/460V AC Voltage, 1700 rpm Nameplate RPM
This 1/4 HP three-phase general purpose motor from Leeson is designed for heavy-duty applications that require reliable performance and efficiency. Suitable for use in a variety of industries, including manufacturing, textile, and food processing, this motor can handle continuous duty operations and withstand temperatures up to 40 degrees Celsius. Its totally enclosed fan cooled design ensures quiet and efficient operation, while its rigid base motor mounting type provides stability and durability. With a nameplate RPM of 1700 and a nominal efficiency of 68 percent, this motor is an ideal choice for applications that demand high performance and reliability.
Top product features:
- Three-phase operation for efficient power usage
- Totally enclosed fan cooled motor enclosure design for reliable operation in harsh environments
- Ball motor bearings for smooth and quiet rotation at high speeds
Top product applications:
- Industrial conveyor belt systems
- Pumps and compressors for small commercial buildings
- Small to medium-sized manufacturing equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/4 HP, 0.18 kW, Nameplate RPM 1700 rpm, Frame 63, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.0/0.50 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 68 Percent, Continuous Duty, 1601-1700
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.24
- Package Width: 6.89
- Package Height: 7.48
- Package Weight: 12.00
Product info last updated on February 15, 2026 7:47pm UTC
Category: Motors
