Vector Motor, 3-Phase, 1HP, 230/460V MPN:145THTN8037
Vector Motor, 3-Phase, 1HP, 230/460V

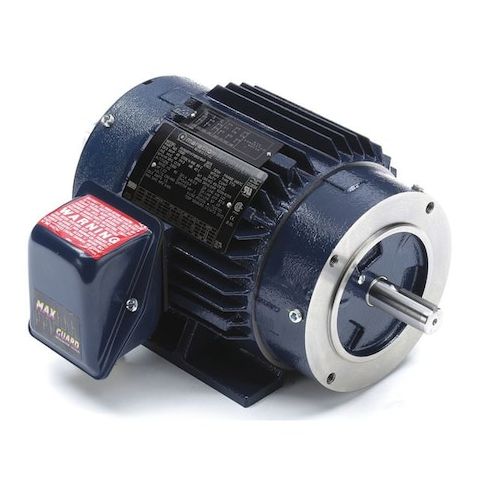

This 1HP three-phase vector motor from Leeson is designed for high-performance applications requiring precise speed control and efficient operation. With a nameplate RPM of 1,756 and a speed range of 2,000:1, it provides smooth and reliable operation in a variety of settings. Suitable for use in industrial environments, it features a 143TC frame, motor thermal protection, and a maximum ambient temperature of 104 degrees F. Ideal for applications such as conveyor systems, pumps, and fans, this motor offers improved efficiency, reduced energy consumption, and increased productivity. Its compact design and durable construction make it a reliable choice for demanding industrial applications.
Top product features:
- Three-phase operation
- 143TC frame design
- Speed range of 2,000:1
Top product applications:
- Pump applications for water or chemical transfer
- Conveyor systems for light to medium-duty use
- General purpose machinery for industrial use
Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,756, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Max. Speed 5,400 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.82
- Package Width: 12.56
- Package Height: 9.38
- Package Weight: 65.00
Product info last updated on February 15, 2026 9:03pm UTC
Category: Motors
