Vector Motor, 2 HP, 3600 rpm, 230/460V MPN:145THEN8034

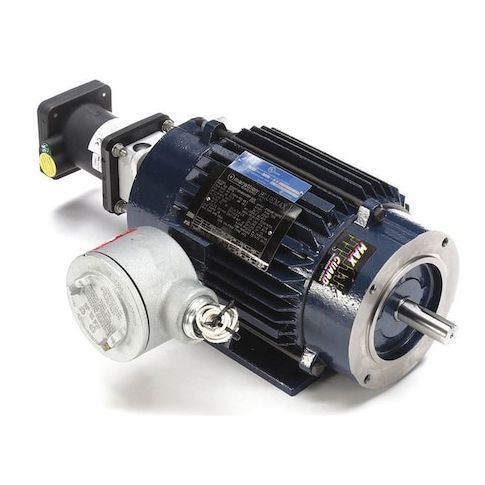

Vector Motor, 2 HP, 3600 rpm, 230/460V
The Leeson Vector Motor is a high-performance, three-phase motor designed for demanding applications. With a 2 HP output and 3,600 rpm speed, it provides efficient power for a variety of uses. Suitable for continuous duty, this motor is ideal for industrial settings, such as manufacturing and material handling. Its compact design and totally enclosed non-ventilated (TENV) enclosure make it a great choice for space-constrained areas. The motor's 2,000:1 speed range and 90 Hz maximum operating frequency ensure reliable performance in a range of applications, from pumps and fans to conveyor systems and more.
Top product features:
- Totally Enclosed Non-Ventilated motor enclosure provides protection from dust and debris.
- Three Phase motor design allows for efficient power distribution and reduced energy consumption.
- 145TC frame design provides a compact and space-efficient motor configuration.
Top product applications:
- Industrial Automation Systems
- Pump and Fan Applications
- Material Handling Equipment
Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 5.8/2.9 A, 145TC Frame, Max. Speed 3,600 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 90 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.00
- Package Width: 13.25
- Package Height: 12.00
- Package Weight: 90.00
