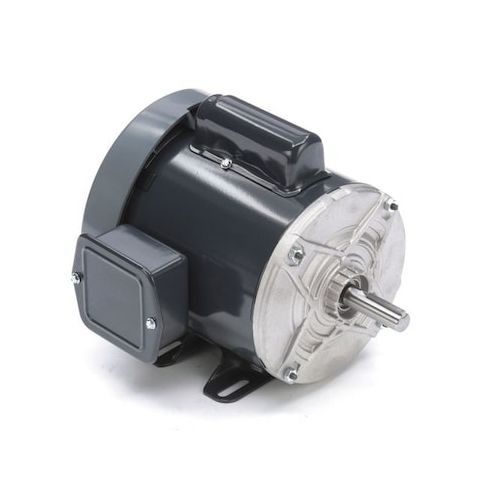

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:5KC42GN0014
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame
This 1/2 hp capacitor-start motor is a reliable and efficient solution for a wide range of applications. Suitable for use in 115/208-230V AC environments, it offers a high level of performance and durability. The motor's totally enclosed fan cooled design ensures optimal heat dissipation, while its rigid base mounting type provides stability and ease of installation. With a continuous duty cycle and a service factor of 1.15, this motor is ideal for applications such as pumps, fans, and conveyor systems in commercial and industrial settings, providing a cost-effective and long-lasting solution for your power needs.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor reliability and reduced maintenance.
- Capacitor-Start motor design for efficient starting and reduced power consumption.
- Continuous duty cycle for reliable operation in demanding applications.
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.6/4.3-4.1 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.19
- Package Width: 10.94
- Package Height: 9.50
- Package Weight: 21.00
Product info last updated on February 14, 2026 5:28pm UTC
Category: Motors
