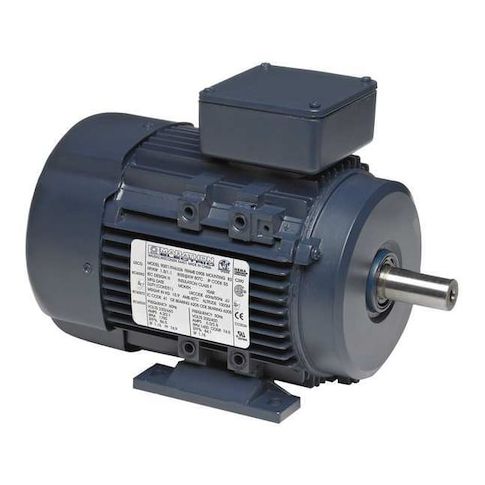

Three-Phase General Purpose Motor, 1/3 HP, 63 Frame, 230/460V AC Voltage, 3430 rpm Nameplate RPM MPN:063T34FH5302
Three-Phase General Purpose Motor, 1/3 HP, 63 Frame, 230/460V AC Voltage, 3430 rpm Nameplate RPM
This 1/3 HP three-phase general purpose motor from Leeson is a reliable and efficient solution for a wide range of applications. Suitable for continuous duty, it features a totally enclosed fan-cooled motor enclosure design and rigid base mounting for stable operation. With a high service factor of 1.15 and ball bearings for smooth rotation, this motor can handle demanding tasks with ease. Its compact size and lightweight aluminum frame make it easy to install and maintain. Ideal for use in industrial settings, such as manufacturing facilities, warehouses, and laboratories, this motor delivers high performance and long lifespan.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty
Top product applications:
- Industrial laundry equipment
- Pumps and water treatment systems
- Food processing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, 0.25 kW, Nameplate RPM 3430 rpm, Frame 63, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.1/0.55 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.19
- Package Width: 6.89
- Package Height: 7.68
- Package Weight: 25.00
Product info last updated on February 28, 2026 10:32pm UTC
Category: Motors
