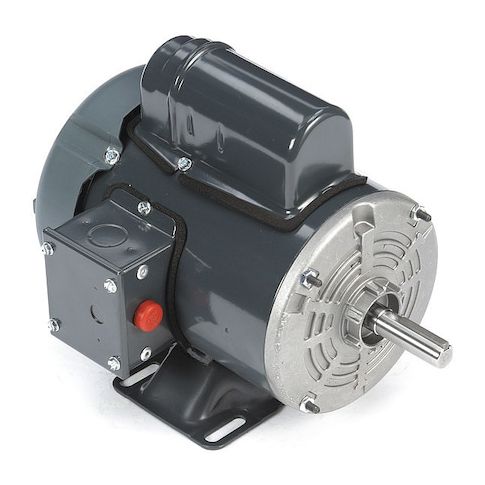

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame MPN:056C17F2051
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56 Frame
The Leeson 1/2 hp Capacitor-Start General Purpose Motor is a reliable and efficient solution for various applications. Suitable for use in 115/208-230V AC environments, this motor delivers 1,725 RPM and 8.0/4.0 A full-load amps. Its totally enclosed fan-cooled design ensures durability and performance in demanding conditions. Perfect for continuous duty cycles, this motor is ideal for industrial, commercial, and residential settings where high-speed operation is required. Its compact size and rigid base mounting make it easy to install, while its 1.15 service factor provides added reliability. Ideal for applications such as pumps, fans, and conveyors.
Top product features:
- Totally Enclosed Fan Cooled design for efficient heat dissipation
- Motor Thermal Protection for safe operation
- Continuous Duty Cycle for uninterrupted performance
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.0/4.0 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.75
- Package Width: 9.50
- Package Height: 9.38
- Package Weight: 23.00
Product info last updated on February 14, 2026 1:06pm UTC
Category: Motors
