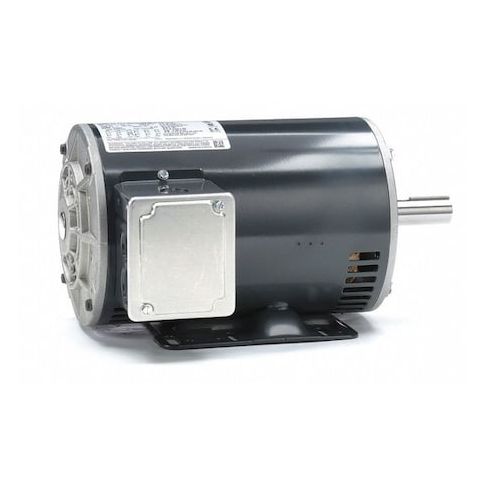

Three-Phase General Purpose Motor, 3/4 HP, 145T Frame, 230/460V AC Voltage, 850 rpm Nameplate RPM MPN:145TTDR5401
Three-Phase General Purpose Motor, 3/4 HP, 145T Frame, 230/460V AC Voltage, 850 rpm Nameplate RPM
This 3/4 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With a nameplate RPM of 850 rpm and a rigid base motor mounting type, it provides reliable and efficient operation. The motor is suitable for use in environments with a maximum ambient temperature of 40 degrees C and features a steel frame for durability. Its 1.15 service factor and continuous duty rating make it ideal for applications that require consistent operation. The motor is also CE, CSA, and UL recognized, ensuring compliance with industry standards.
Top product features:
- Three-Phase General Purpose Motor
- Operates at 850 rpm
- Has a rigid base motor mounting type
Top product applications:
- Pumps
- Fans
- Compressors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 850 rpm, Frame 145T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.0/2.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 0-1000, CE, CSA, UL Recognized
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 42.00
Product info last updated on February 1, 2026 9:57pm UTC
Category: Motors
