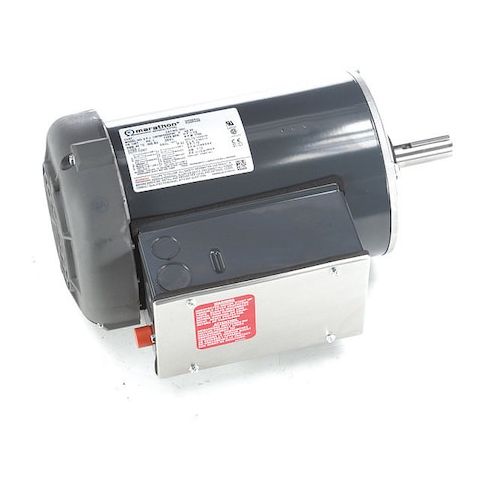

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 145T Frame MPN:145TBFR5327
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 145T Frame
This 1.5 hp single-phase motor is designed for general purpose applications, featuring a capacitor-start/run design for efficient and reliable operation. Suitable for use in a variety of settings, including industrial and commercial environments, it can operate at 115, 208, or 230V AC voltage. The motor's totally enclosed fan-cooled design provides excellent cooling and protection from dust and moisture, while its continuous duty cycle and manual thermal protection ensure reliable operation in demanding applications. Its compact size and easy installation make it an ideal choice for a wide range of applications, including pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Fan Cooled design for improved durability and reliability
- Single Phase, Capacitor-Start/Run motor design for efficient operation
- Continuous duty cycle for uninterrupted performance in demanding applications
Top product applications:
- Pumps
- Fans
- Air Compressors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 15.2/8.2-7.6 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 43.00
