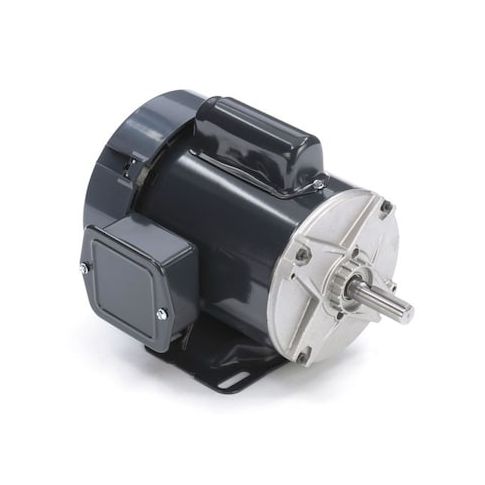

Capacitor-Start General Purpose Motor, 1/3 hp HP, 56 Frame, 115/230V AC Voltage MPN:5KC35MN43
Capacitor-Start General Purpose Motor, 1/3 hp HP, 56 Frame, 115/230V AC Voltage
This 1/3 hp capacitor-start general purpose motor is a reliable and efficient solution for a variety of applications. Suitable for use in 115/230V AC environments, it features a 1,725 RPM nameplate speed and a 6.0/3.0 A full load amp rating. The motor's totally enclosed fan cooled design ensures reliable operation in a range of temperatures, making it ideal for use in industrial settings. Its continuous duty cycle and rigid base mounting make it suitable for applications where high reliability and low maintenance are required, such as in manufacturing, material handling, and other industrial processes.
Top product features:
- Capacitor-start design for improved starting torque and efficiency
- Totally enclosed fan-cooled design for protection against dust and moisture
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Pumps and Pumps Accessories
- Fans and Blowers
- Conveyor Systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.0/3.0 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.44
- Package Width: 10.19
- Package Height: 9.50
- Package Weight: 19.20
Product info last updated on February 2, 2026 7:52pm UTC
Category: Motors
