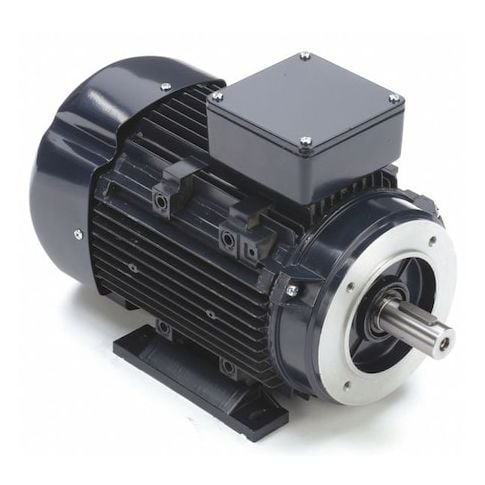

Three-Phase General Purpose Motor, 2 HP, 90L Frame, 230/460V AC Voltage, 1745 rpm Nameplate RPM MPN:090LT17FH6419
Three-Phase General Purpose Motor, 2 HP, 90L Frame, 230/460V AC Voltage, 1745 rpm Nameplate RPM
This 2 HP three-phase general purpose motor from Leeson is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure provides reliable performance in harsh environments, while its rigid base and C-face motor mounting type ensure stable operation. With a high efficiency rating of 86.5% and a service factor of 1.15, this motor is ideal for applications that require continuous duty operation. Suitable for use in facilities with high ambient temperatures, this motor is a reliable choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Industrial Automation
- Pumping Systems
- Conveyor Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, 1.49 kW, Nameplate RPM 1745 rpm, Frame 90L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 5.4/2.7 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.55
- Package Width: 9.65
- Package Height: 10.63
- Package Weight: 44.00
Product info last updated on February 24, 2026 12:54pm UTC
Category: Motors
