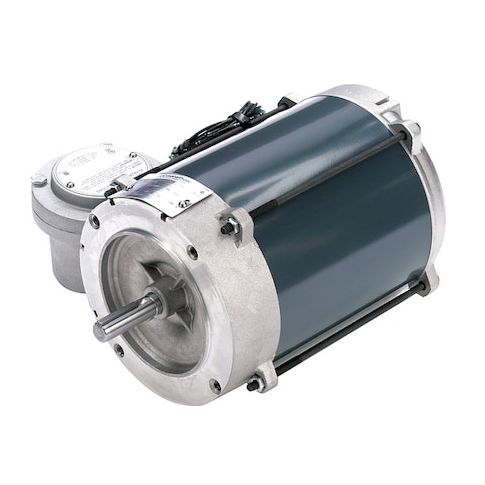

HazLoc Motor, 3-Ph, 1/4 HP, 1725 RPM, 56C MPN:056T17E5310
HazLoc Motor, 3-Ph, 1/4 HP, 1725 RPM, 56C
The HazLoc Motor from Leeson is a reliable and efficient solution for hazardous location applications. This 3-phase motor is designed for continuous operation in environments where safety is paramount, meeting Class I, Class II, and T3B temperature code requirements. With a 1/4 HP rating and 1725 RPM, it provides consistent performance in a wide range of applications, including industrial processes, chemical plants, and oil refineries. Its totally enclosed non-ventilated design and automatic thermal protection ensure safe and reliable operation in extreme temperatures, making it an ideal choice for harsh environments.
Top product features:
- Three-phase operation
- Totally enclosed non-ventilated motor enclosure
- Continuous duty cycle
Top product applications:
- Pump application in a hazardous location such as a chemical plant or refinery
- Conveyor system in a hazardous location such as a coal mine or oil rig
- Air compressor in a hazardous location such as a gas station or fueling dock
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.1-1.1/0.55 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 25.00
Product info last updated on February 8, 2026 7:29am UTC
Category: Motors
