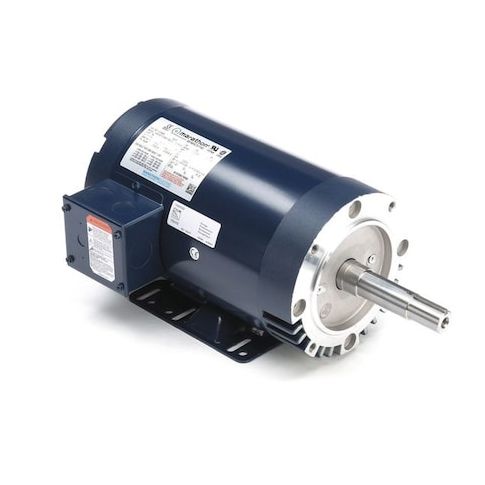

Close-Coupled Pump Motor, 3-Phase, 3 HP MPN:145TTDR6013
Close-Coupled Pump Motor, 3-Phase, 3 HP
This 3-phase, 3 HP close-coupled pump motor from Leeson is designed for continuous duty cycles in a variety of applications. Suitable for use in harsh environments, it features a Class F insulation and operates at temperatures up to 40°C. The motor is inverter-rated for variable torque applications and is also suitable for constant torque applications. Its compact design makes it ideal for use in tight spaces. With its high efficiency and reliability, this motor is perfect for use in commercial and industrial settings, such as water treatment plants, chemical processing facilities, and HVAC systems.
Top product features:
- Close-coupled design for efficient heat transfer and reduced vibration
- Ball bearings for smooth and quiet operation
- Inverter-rated for variable torque applications up to 10:1
Top product applications:
- Pump
- Motor Bearings Ball
- Inverter Rated
Close-Coupled Pump Motor, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 145JM, Hz 60/50, Full Load Amps 7.2/3.6, Full Load Amps @ 50Hz 7.2/3.6, Height 6 3/4 in, HP 3, HP @ 50Hz 3, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 10 1/2 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 10.44
- Package Height: 10.88
- Package Weight: 47.60
Product info last updated on February 13, 2026 3:47pm UTC
Category: Motors
