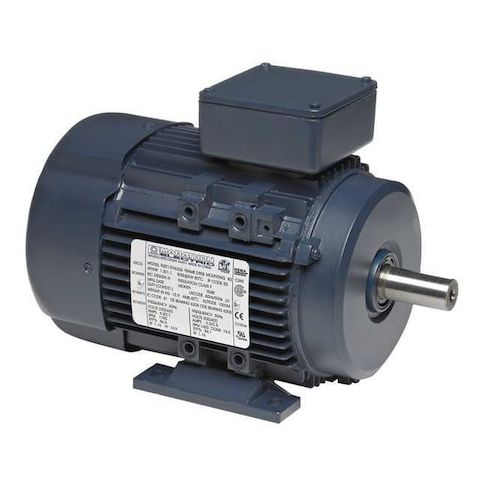

Three-Phase General Purpose Motor, 1 1/2 HP, 80M Frame, 575V AC Voltage, 3, 450 Nameplate RPM MPN:080T34FH5303
Three-Phase General Purpose Motor, 1 1/2 HP, 80M Frame, 575V AC Voltage, 3, 450 Nameplate RPM
This 1.5 HP three-phase general purpose motor from Leeson is designed for a variety of industrial applications, including manufacturing, pumping, and HVAC systems. Its totally enclosed fan cooled motor enclosure design provides efficient cooling and protection from harsh environments. With a high service factor of 1.15 and ball bearings for smooth operation, this motor offers reliable performance and long lifespan. Its high efficiency of 74.8% and continuous duty rating make it suitable for demanding applications, while its compact size and lightweight design make it easy to install and maintain. Suitable for use in a wide range of industries and settings.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable cooling and reduced maintenance
- Ball motor bearings for smooth and long-lasting operation
Top product applications:
- Industrial Pumping Systems
- Heavy Duty Fans and Blowers
- Conveyor Belt Drives
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, 1.12 kW, Nameplate RPM 3,450, Frame 80M, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74.8 Percent, Continuous Duty, 3001-3600, CE, UL Recognized
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.10
- Package Width: 9.25
- Package Height: 11.11
- Package Weight: 35.00
Product info last updated on April 6, 2026 6:40pm UTC
Category: Motors
