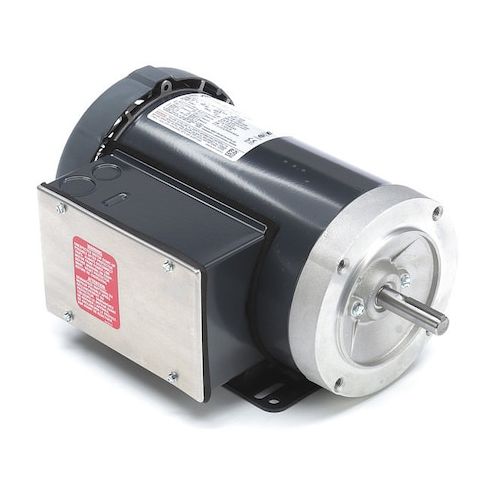

Capacitor-Start/Run General Purpose Farm Duty Motor, 1 1/2 HP, 115/208-230V AC Voltage, 56HC Frame MPN:056B17F5584
Capacitor-Start/Run General Purpose Farm Duty Motor, 1 1/2 HP, 115/208-230V AC Voltage, 56HC Frame
This 1.5 HP farm duty motor is a reliable and efficient solution for a variety of applications, including irrigation systems, water pumps, and other farm equipment. With its capacitor-start/run design, it provides a smooth and quiet operation, while its totally enclosed fan-cooled enclosure protects against dust and moisture. The motor is suitable for use with 115/208-230V AC voltage and can operate continuously in temperatures up to 40°C. Its compact size and lightweight design make it easy to install and maintain, making it an ideal choice for farmers and ranchers who require a dependable and hardworking motor.
Top product features:
- Totally Enclosed Fan Cooled enclosure design for improved reliability and protection in harsh environments
- Manual thermal protection for user-controlled monitoring and maintenance
- Single Phase motor design with Capacitor-Start/Run functionality for efficient and reliable operation
Top product applications:
- Pump for irrigation systems
- Well pump for rural homes
- Centrifugal pump for dairy farm operations
Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 15.2/8.2-7.6 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 41.00
Product info last updated on May 5, 2026 2:39pm UTC
Category: Motors
