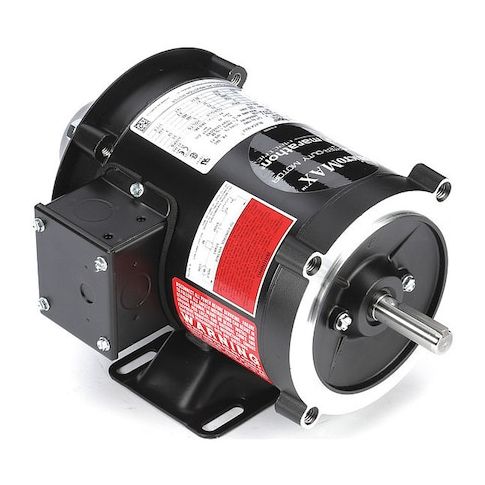

Vector Motor, 1/4 HP, .75 lb-ft, 230/460V MPN:056H17T2001
Vector Motor, 1/4 HP, .75 lb-ft, 230/460V
This 1/4 HP, three-phase Vector Motor from Leeson is designed for demanding applications, delivering 0.75 ft-lb of torque at 1,725 nameplate RPM. With a speed range of 1,000:1 and a maximum speed of 5,400 RPM, it's ideal for use in industrial settings, such as conveyor systems, pumps, and fans. The motor's continuous duty cycle and NEMA Design A rating ensure reliable operation in a variety of environments. Its compact size and lightweight design make it easy to integrate into existing systems, while its 56C frame provides a high level of durability and protection.
Top product features:
- Three-phase operation
- Continuous duty cycle
- Torque output of 0.75 lb-ft
Top product applications:
- Pumps
- Conveyors
- Fans
Vector Motor, Three Phase, Motor Design 3-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.15/0.58 A, 56C Frame, Torque 0.75 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.75
- Package Width: 7.88
- Package Height: 8.75
- Package Weight: 19.00
