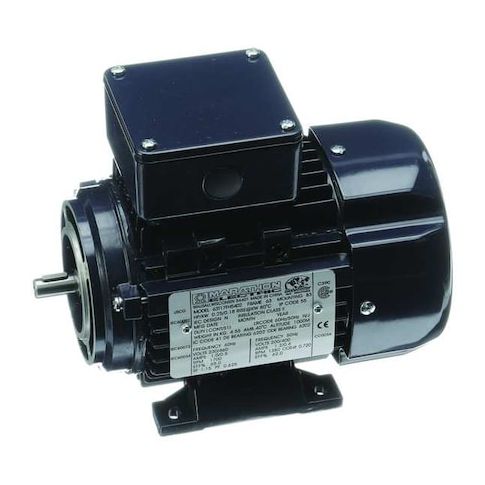

Three-Phase General Purpose Motor, 1/4 HP, 63C Frame, 230/460V AC Voltage, 1700 rpm Nameplate RPM MPN:063T17FH5402
This Leeson three-phase general purpose motor is designed for a variety of applications requiring reliable and efficient power. With a 1/4 HP rating and 1700 rpm nameplate speed, it's ideal for use in manufacturing, material handling, and other industrial settings. The totally enclosed fan cooled motor enclosure design ensures a long lifespan and quiet operation, while the rigid base and C-face motor mounting type provide added stability and ease of installation. Suitable for continuous duty, this motor offers high efficiency and a service factor of 1.15, making it a reliable choice for demanding applications.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pump and Blower Applications
- Industrial Conveyors
- Air Compressors
The LEESON - 063T17FH5402 is a General Purpose Motor, a type of 3-phase AC motor widely used in industrial and commercial settings. This motor converts electrical energy into mechanical energy to operate various types of machinery, making it versatile across different sectors such as manufacturing lines and HVAC systems.
Key Features of the LEESON - 063T17FH5402 General Purpose Motor:
- Duty Cycle: The continuous duty cycle is intended for use in industrial applications.
- Frame: The frame size (63C) adheres to standard specifications.
- Full Load Amps: It draws maximum current of 1.0/0.50 A when operating at full capacity, crucial for determining power supply requirements.
- Horsepower (HP): With an output power of 45661 HP, this motor is suitable for a range of potential uses within the specified parameters.
- Inverter Rated: Yes – This means that the motor has been constructed with the intention of being powered by a variable frequency drive. Actual performance may vary based on usage conditions.
- Kilowatt (Kw): With an output capacity of 0.18 Kw, it's designed to convert electrical energy into mechanical force under normal operating conditions.
- Max Ambient Temp.: It's rated for operation up to a maximum ambient temperature of 40 Degrees C
- however, actual performance may vary depending on environmental factors and usage patterns.
- Motor Enclosure Design: Its Totally Enclosed Fan Cooled design aims at protecting internal components from certain environmental factors while providing cooling mechanism under normal operating conditions
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.24
- Package Width: 6.89
- Package Height: 7.48
- Package Weight: 12.00
