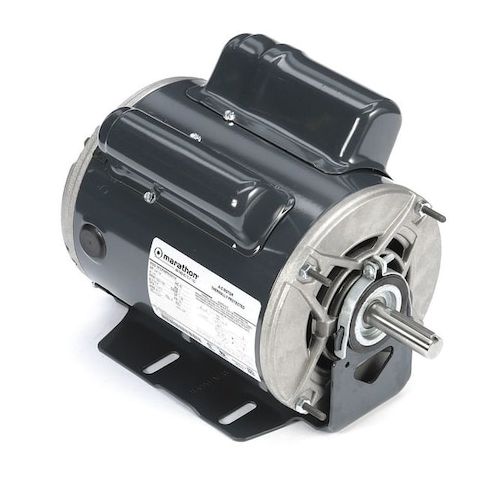

Capacitor-Start/Run General Purpose Motor, 1/4 hp, 3/4 hp HP, 115V AC Voltage, 56 Frame MPN:5KCR49PN3011X
Capacitor-Start/Run General Purpose Motor, 1/4 hp, 3/4 hp HP, 115V AC Voltage, 56 Frame
This 1/4 to 3/4 horsepower single-phase motor is designed for a variety of applications, including residential and commercial use. Its capacitor-start/run design provides efficient operation and reliable performance. The motor's open drip-proof enclosure protects against dust and water, making it suitable for use in harsh environments. Its continuous duty cycle and thermal protection ensure long motor life. Ideal for use in fans, pumps, and compressors, this motor's versatility and reliability make it a valuable addition to any industrial or commercial setting. Its compact size and low weight also make it easy to install and maintain.
Top product features:
- Capacitor-start/run design for efficient motor operation
- Single phase motor design for use in various applications
- Open drip proof motor enclosure design for protection against dust and water
Top product applications:
- Pumps and water circulation systems
- Fans and ventilation systems
- Air compressors and pneumatic tools
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp, 3/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 9.0/6.4 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.69
- Package Width: 7.13
- Package Height: 7.50
- Package Weight: 31.00
Product info last updated on February 24, 2026 7:56am UTC
Category: Motors
