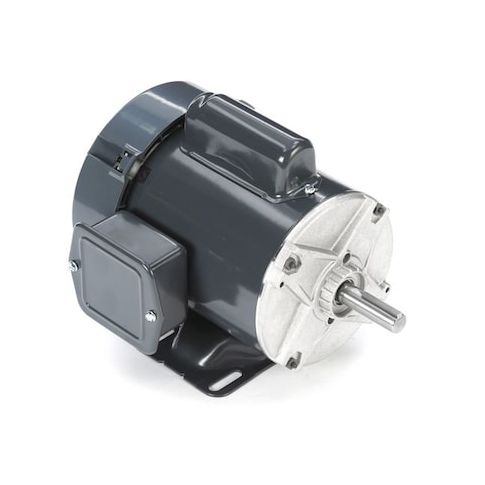

Capacitor-Start General Purpose Motor, 1/3 hp HP, 56 Frame, 115/230V AC Voltage MPN:5KC35MN43X
Capacitor-Start General Purpose Motor, 1/3 hp HP, 56 Frame, 115/230V AC Voltage
This 1/3 hp capacitor-start general purpose motor from Leeson is a reliable and efficient solution for a variety of applications. Suitable for use in 115/230V AC environments, it provides a nameplate RPM of 1,725 RPM and a single-phase motor design. The motor is designed for continuous duty cycles and features a totally enclosed fan-cooled enclosure to protect against harsh environments. Its compact size and rigid base mounting make it ideal for use in industrial settings, such as manufacturing facilities, warehouses, and commercial buildings. With a service factor of 1.15, this motor delivers reliable performance and long-lasting operation.
Top product features:
- Capacitor-start design for improved starting performance
- Totally enclosed fan cooled design for increased durability and reduced maintenance
- Continuous duty cycle for reliable operation under heavy loads
Top product applications:
- Water Pump
- Pump Jack
- Fan Motor
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.0/3.0 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.44
- Package Width: 10.19
- Package Height: 9.50
- Package Weight: 20.00
Product info last updated on March 22, 2026 9:23am UTC
Category: Motors
