Vector Motor, 3-Phase, 1HP, 230/460V MPN:143THTN8036

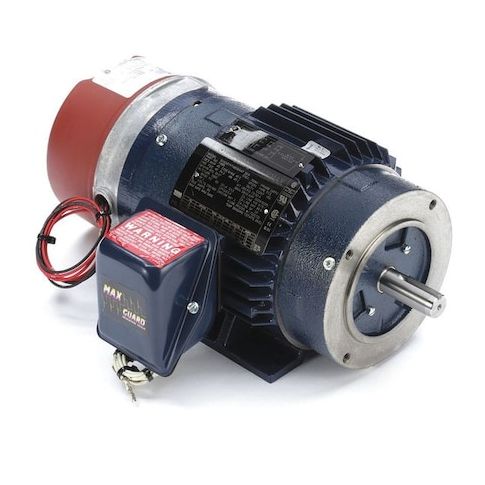

Vector Motor, 3-Phase, 1HP, 230/460V
This 1HP, 3-phase vector motor from Leeson is designed for demanding applications that require high efficiency and reliability. Suitable for use in industrial settings, it provides a speed range of 2,000:1 and a maximum speed of 5,400 RPM. With a compact 143TC frame and a motor service factor of 1, it can operate continuously in temperatures up to 104°F. Ideal for applications such as conveyor systems, pumps, and material handling equipment, this motor offers a cost-effective solution for industries that require high-torque performance and long motor life.
Top product features:
- Three-phase operation
- 143TC frame design
- T-Stat thermal protection
Top product applications:
- Industrial Automation
- Conveyor Systems
- Material Handling Equipment
Vector Motor, Three Phase, Motor Design Three-Phase, 1 HP, Nameplate RPM 1,756, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.0/1.5 A, 143TC Frame, Torque 6 ft-lb, Max. Speed 5,400 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.20
- Package Width: 13.20
- Package Height: 13.70
- Package Weight: 73.00
