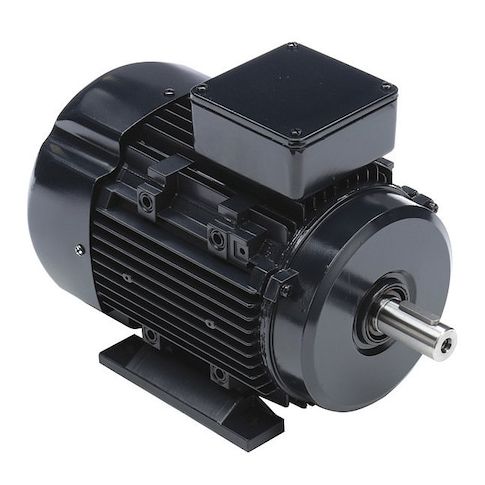

Three-Phase General Purpose Motor, 3 HP, 90L Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM MPN:090LT34FH6301
Three-Phase General Purpose Motor, 3 HP, 90L Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, 2.24 kW, Nameplate RPM 3500 rpm, Frame 90L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.2/3.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 3001-3600, CE, CSA
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.76
- Package Width: 9.65
- Package Height: 10.63
- Package Weight: 41.00
Product info last updated on March 9, 2026 12:05am UTC
Category: Motors
