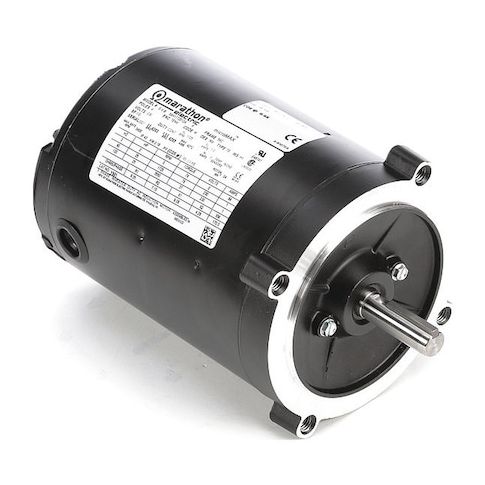

Vector Motor, 1/4 HP, .76 ft.-lb., 230V MPN:056H17T2012
Vector Motor, 1/4 HP, .76 ft.-lb., 230V
This 1/4 HP Vector Motor from Leeson is a reliable and efficient solution for a variety of applications, including industrial and commercial use. With a high torque output of 0.76 ft-lb and a speed range of 1,000:1, this motor is ideal for applications that require precise speed control. Its compact design and durable construction make it a great choice for use in tight spaces, and its continuous duty cycle ensures reliable operation even in demanding environments. Suitable for applications such as conveyors, pumps, and fans, this motor offers a cost-effective and long-lasting solution for your needs.
Top product features:
- Three-phase operation
- 56C frame design
- Continuous duty cycle
Top product applications:
- Conveyor Systems
- Packaging Machinery
- Material Handling Equipment
Vector Motor, Three Phase, Motor Design Three-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.0 A, 56C Frame, Torque 0.76 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.06
- Package Width: 6.75
- Package Height: 6.62
- Package Weight: 16.00
Product info last updated on March 12, 2026 4:43pm UTC
Category: Motors
