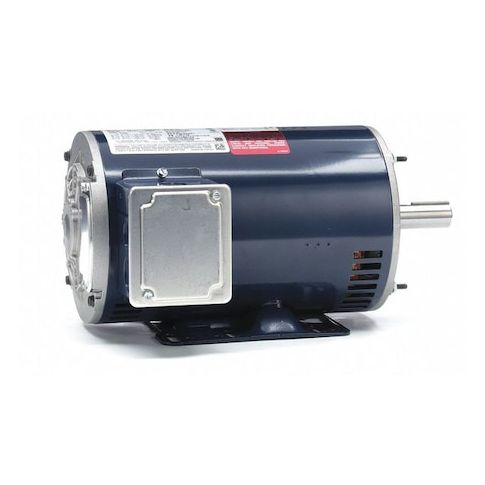

Three-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM MPN:145TTDR6132
Three-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM
This 2 HP three-phase general purpose motor from Leeson is designed for a wide range of applications, including industrial processes, manufacturing, and commercial use. Its open drip-proof motor enclosure and rigid base mounting type provide a durable and reliable solution for continuous duty operations. With a nameplate RPM of 1750 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks while maintaining efficiency. Its high service factor and thermal protection ensure long motor life, making it an ideal choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Three-Phase operation allows for efficient power transmission and distribution.
- Open Drip Proof Motor Enclosure Design provides protection against dust and water splashes.
- Ball Motor Bearings ensure smooth and quiet operation.
Top product applications:
- Industrial Automation
- Pump and Fan Applications
- Conveyor Systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1750 rpm, Frame 145T, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 6.0/3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.82
- Package Width: 12.56
- Package Height: 9.38
- Package Weight: 48.00
Product info last updated on February 5, 2026 7:19pm UTC
Category: Motors
