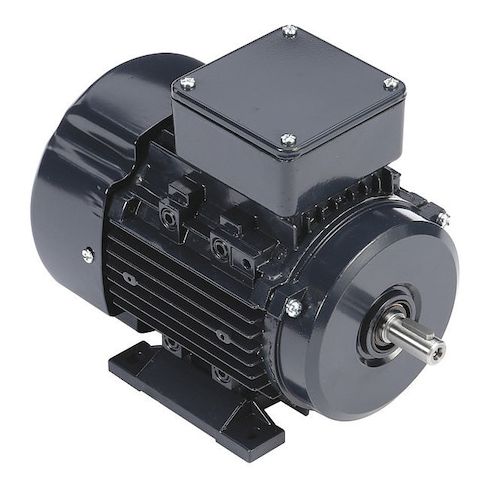

Three-Phase General Purpose Motor, 3/4 HP, 80 Frame, 230/460V AC Voltage, 1690 rpm Nameplate RPM MPN:80T17FH5326
Three-Phase General Purpose Motor, 3/4 HP, 80 Frame, 230/460V AC Voltage, 1690 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, 0.56 kW, Nameplate RPM 1690 rpm, Frame 80, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 2.5/1.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, Continuous Duty, 1601-1700
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.39
- Package Width: 9.65
- Package Height: 10.24
- Package Weight: 23.00
Product info last updated on February 21, 2026 1:09pm UTC
Category: Motors
