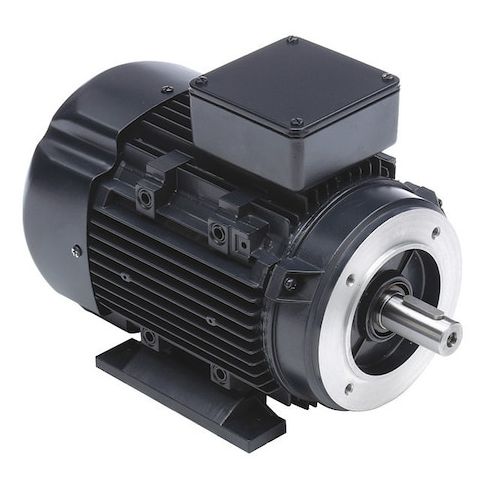

Three-Phase General Purpose Motor, 3 HP, 90L Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM MPN:090LT34FH6420
Three-Phase General Purpose Motor, 3 HP, 90L Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM
This 3 HP three-phase general purpose motor is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. With a totally enclosed fan cooled motor enclosure, it provides reliable operation in harsh environments. The motor's 87.5% nominal efficiency and 1.15 service factor make it suitable for continuous duty applications. Its 3500 rpm nameplate speed and rigid base design ensure precise control and stability. Suitable for use in facilities with 230/460V AC voltage, this motor is an ideal choice for applications where high performance and reliability are required.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable heat dissipation
- Ball motor bearings for smooth and durable operation
Top product applications:
- Industrial conveyor systems
- Material handling equipment
- Pumps and pumping systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, 2.24 kW, Nameplate RPM 3500 rpm, Frame 90L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.2/3.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.76
- Package Width: 9.65
- Package Height: 10.63
- Package Weight: 41.00
Product info last updated on February 19, 2026 9:39pm UTC
Category: Motors
