Three-Phase General Purpose Motor, 1/2 HP, 71 Frame, 230/460V AC Voltage, 1695 rpm Nameplate RPM MPN:071T17FH5408

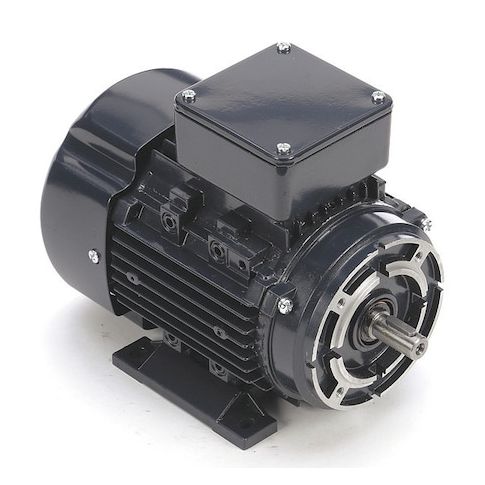

This Leeson 1/2 HP three-phase general purpose motor is designed for a variety of applications, including industrial processes, manufacturing, and commercial settings. With a totally enclosed fan-cooled motor enclosure, it provides reliable operation in harsh environments. The motor's high efficiency and continuous duty rating make it suitable for demanding applications, while its rigid base and C-face motor mounting type ensure secure installation. Suitable for use in 230/460V AC voltage systems, this motor is a reliable choice for applications requiring high performance and durability. Its compact size and lightweight design also make it easy to integrate into existing systems.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Pumps
- Industrial Laundry Equipment
- Manufacturing Machinery
The LEESON - 071T17FH5408 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is commonly used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery across various sectors, from manufacturing lines to HVAC systems.
Key Features of the LEESON - 071T17FH5408 General Purpose Motor:
- Duty Cycle: The motor has a continuous duty cycle, which is a specification for certain types of operation.
- Frame: With a frame size of 71, it conforms to standard specifications for compatibility and interchangeability.
- Full Load Amps: The motor has a rated current draw of 1.8/0.90 A under full load conditions
- it's important to consider these specifications when planning power supply requirements.
- Horsepower (HP): With an output power rating of up to 45659 HP, this motor is designed for use in various industrial applications.
- Inverter Rated: Yes - this indicates that the motor is compatible with variable frequency drives which may allow more control over speed and torque depending on application needs.
- Kilowatt (Kw): With a rated output capacity of 0.37 Kw, this provides information about potential conversion rates from electrical energy to mechanical force under specified conditions.
- Motor Bearings: Ball bearings are incorporated within its design intended to reduce friction between moving parts
- actual performance may vary based on specific load conditions
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.24
- Package Width: 6.89
- Package Height: 7.48
- Package Weight: 16.00
