Hazardous Loc Mtr, Cap Strt/Ind Run, EPFC MPN:056C17G5315
Hazardous Loc Mtr, Cap Strt/Ind Run, EPFC

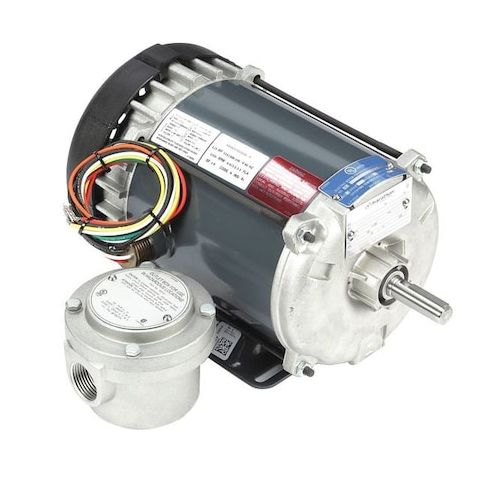

This hazardous location motor from Leeson is designed for use in environments where standard motors are not suitable. It features a capacitor-start design and is available in a 1/3 horsepower rating, making it ideal for applications such as oil and gas refineries, chemical plants, and other industrial settings. The motor's totally enclosed fan-cooled design provides reliable operation in harsh conditions, while its 1.725 RPM nameplate speed and 60 Hz frequency ensure efficient performance. With a maximum ambient temperature of 40 degrees C and a motor service factor of 1, this motor is engineered for continuous duty cycles in demanding environments.
Top product features:
- Totally Enclosed Fan Cooled motor design for improved cooling and reliability
- Capacitor-Start motor design for efficient operation
- Continuous duty cycle for uninterrupted performance
Top product applications:
- Industrial control panels
- Pumps and compressors in hazardous locations
- High-humidity environments such as laundries and breweries
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.6/3.1-3.3 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 11.90
- Package Height: 10.90
- Package Weight: 28.80
Product info last updated on February 24, 2026 4:16am UTC
Category: Motors
