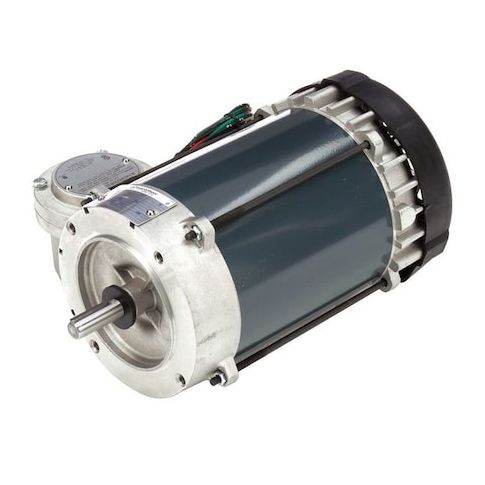

Hazardous Loc Mtr, Cap Strt/Ind Run, 1/2HP MPN:056C17G5321
Hazardous Loc Mtr, Cap Strt/Ind Run, 1/2HP
This hazardous location motor is designed for use in environments where flammable gases or dust are present, such as chemical plants, oil refineries, or agricultural facilities. With a single-phase, capacitor-start design, it provides reliable operation and efficient power conversion. The motor's 1/2 horsepower rating and 1,725 RPM make it suitable for a variety of applications, including pumps, fans, and conveyor systems. Its totally enclosed fan-cooled design and continuous duty cycle ensure long-lasting performance in demanding environments. The motor's compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing overall productivity.
Top product features:
- Single Phase Operation
- Motor Design Capacitor-Start
- Totally Enclosed Fan Cooled
Top product applications:
- High-Temperature Furnace Applications
- Pumping or Blowing Systems in Hazardous Locations
- High-Pressure Pneumatic Systems in Hazardous Locations
Hazardous Location Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.2-4.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 28.00
Product info last updated on February 19, 2026 11:19am UTC
Category: Motors
