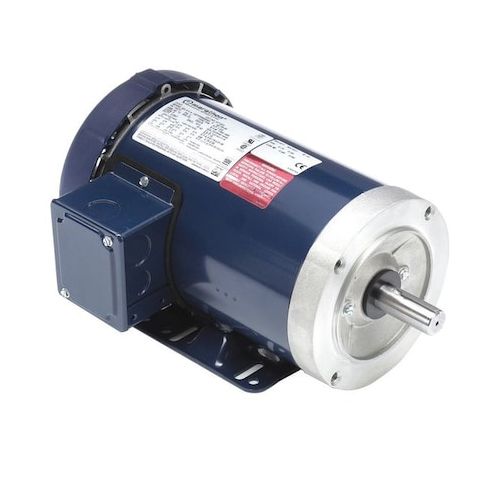

Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:143TTFR6032
Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM
The Leeson 1 HP three-phase general purpose motor is a reliable and efficient solution for a wide range of applications. Suitable for continuous duty, this motor features a totally enclosed fan-cooled design and rigid base for added stability and protection. With a high service factor of 1.15 and ball bearings for smooth operation, this motor can handle demanding tasks with ease. Its compact 143TC frame and CW/CCW shaft rotation make it versatile for use in various industries, including manufacturing, food processing, and more. With an efficiency of 85.5% and a 60/50 Hz frequency range, this motor is a cost-effective and durable choice.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure design for improved cooling and durability
- Ball motor bearings for smooth and reliable operation
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1765 rpm, Frame 143TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.3/1.7 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.38
- Package Width: 10.50
- Package Height: 8.12
- Package Weight: 42.00
Product info last updated on February 28, 2026 11:25am UTC
Category: Motors
