Condenser Fan Motor, 1 hp MPN:056T11O5305

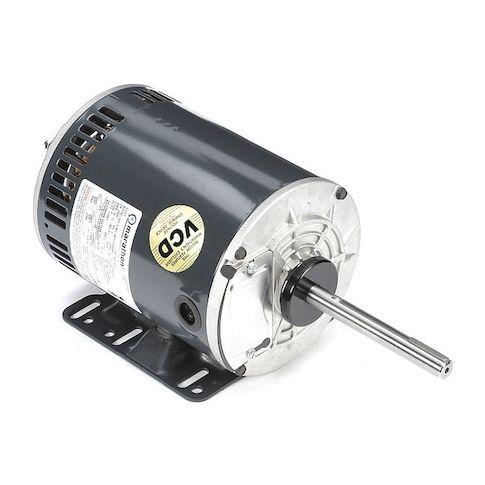

Condenser Fan Motor, 1 hp
This 1 hp three-phase condenser fan motor from Leeson is designed for continuous operation in harsh environments. Its 1,140 RPM motor design and 750 W output make it suitable for a variety of applications, including HVAC systems and industrial ventilation. The motor's open air over design and belly band mounting type provide easy installation and maintenance. With a maximum ambient temperature of 70 degrees C and a motor service factor of 1, this motor is built to withstand demanding conditions. Its compact size and lightweight design make it ideal for use in tight spaces and on uneven surfaces.
Top product features:
- Three-phase operation allows for efficient power transmission and distribution.
- Continuous duty cycle enables the motor to operate for extended periods without overheating.
- Auto thermal protection prevents motor damage from excessive heat buildup.
Top product applications:
- Air Conditioning Units
- HVAC Systems
- Commercial Refrigeration Units
Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.1-4.2/2.1 A Full Load Amps, 56HZ Frame, Output Watts 750 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class H, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Belly Band
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.56
- Package Width: 7.50
- Package Height: 7.50
- Package Weight: 29.00
Product info last updated on April 9, 2026 6:49am UTC
Category: Motors
