Severe Duty Mtr, 3-Ph, TENV, 1 HP MPN:143TTTN6563

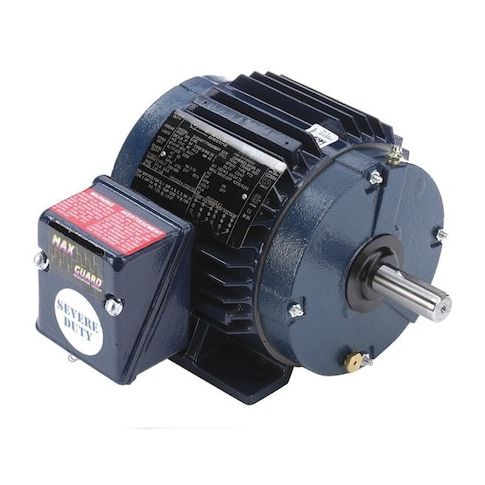

Severe Duty Mtr, 3-Ph, TENV, 1 HP
This 1 HP, three-phase, severe duty motor is designed for heavy-duty applications in demanding environments. With a totally enclosed non-ventilated (TENV) enclosure, it provides protection from dust and moisture. Ideal for use in manufacturing, material handling, and other industrial settings, this motor offers reliable performance and long lifespan. Its rigid base motor mounting type and ball bearings ensure smooth operation and reduced maintenance. With a service factor of 1.15 and a maximum ambient temperature of 40°C, this motor can withstand extreme conditions, making it a reliable choice for applications requiring continuous duty.
Top product features:
- Three-Phase Design for Efficient Power Distribution
- Totally Enclosed Non-Ventilated Motor Enclosure for Protection from Environmental Factors
- Ball Motor Bearings for Smooth and Quiet Operation
Top product applications:
- Industrial conveyor systems
- Heavy-duty pumps
- Large industrial fans
Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1 HP, Nameplate RPM 1,735, Frame 143T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.0/1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.82
- Package Width: 12.56
- Package Height: 9.38
- Package Weight: 55.00
Product info last updated on February 3, 2026 8:25am UTC
Category: Motors
