Close-Coupled Pump Motor, 3-Phase, 2 HP MPN:145TTDR6036

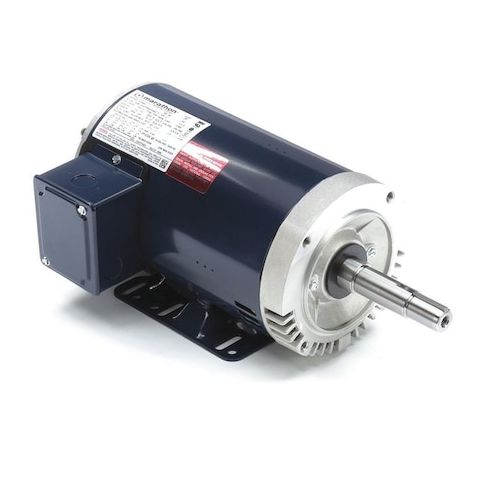

Close-Coupled Pump Motor, 3-Phase, 2 HP
This 2 HP, 3-phase close-coupled pump motor from Leeson is designed for continuous duty cycles in a variety of pump applications. Its compact design and exterior conduit box make it easy to install and maintain. With a 10:1 variable torque and 2:1 constant torque inverter rating, this motor provides reliable and efficient performance. Its ball bearings and Class F insulation ensure long motor life and protection against overheating. Suitable for use in temperatures up to 40 degrees C, this motor is ideal for applications in industrial, commercial, and residential settings where a reliable pump motor is required.
Top product features:
- Close-coupled design for direct power transfer to the pump
- Ball bearings for reduced friction and increased motor life
- Inverter-rated for variable torque applications
Top product applications:
- Pump
- Motor Application
- Inverter Rated
Close-Coupled Pump Motor, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 145JM, Hz 60 Hz, Full Load Amps 6.0/3.0, Height 6 11/16 in, HP 2, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 11 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.31
- Package Width: 11.19
- Package Height: 9.75
- Package Weight: 42.00
Product info last updated on March 7, 2026 8:17pm UTC
Category: Motors
