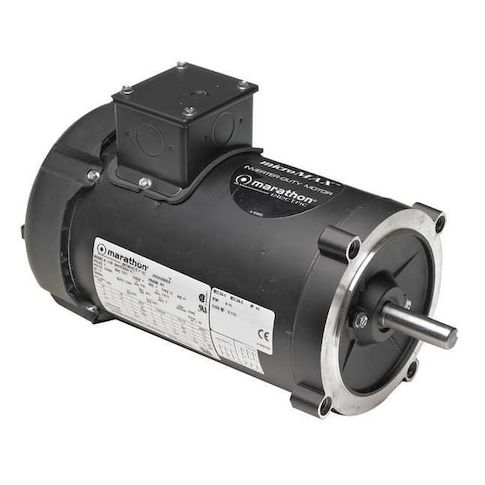

Vector Motor, 3/4 HP, 2.28 ft-lb., 230/460V MPN:056H17F2018
Vector Motor, 3/4 HP, 2.28 ft-lb., 230/460V
This 3/4 HP, 3-phase Vector Motor from Leeson is designed for high-performance applications that require a wide speed range and precise control. With a nameplate RPM of 1,725 and a speed range of 1,000:1, this motor is ideal for use in industrial automation, robotics, and other applications where precise speed control is critical. Its compact design and high torque output make it suitable for use in a variety of industries, including manufacturing, oil and gas, and food processing. With a durable 56C frame and a maximum operating frequency of 120 Hz, this motor is built to withstand demanding applications and provide reliable performance.
Top product features:
- Three Phase Design
- 56C Frame
- Speed Range 1,000:1
Top product applications:
- Pumps and water treatment systems
- Fans and blowers
- Conveyors and material handling equipment
Vector Motor, Three Phase, Motor Design Three-Phase, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8/1.4 A, 56C Frame, Torque 2.28 ft-lb, Max. Speed 5,400 RPM, Speed Range 1,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.44
- Package Width: 9.13
- Package Height: 8.06
- Package Weight: 21.00
Product info last updated on February 4, 2026 11:50pm UTC
Category: Motors
