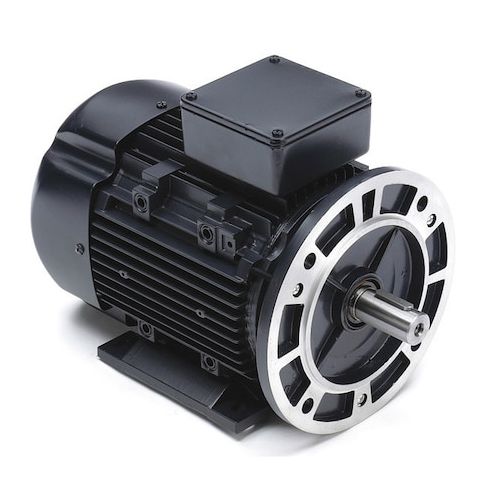

Three-Phase General Purpose Motor, 3 HP, 90L Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM MPN:090LT34FH6520
Three-Phase General Purpose Motor, 3 HP, 90L Frame, 230/460V AC Voltage, 3500 rpm Nameplate RPM
This 3 HP three-phase general purpose motor is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 3500, it provides fast and efficient operation. The totally enclosed fan-cooled motor enclosure design ensures optimal performance in harsh environments. Suitable for use in industrial settings, such as manufacturing facilities, warehouses, and construction sites, this motor is ideal for applications like conveyor systems, pumps, and compressors. Its high service factor of 1.15 and ball bearings provide extended motor life, making it a valuable addition to any industrial operation.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Three-Phase AC Voltage Capability of 230/460V
- Ball Motor Bearings for Smooth Operation
Top product applications:
- Industrial machinery and equipment
- Pumps and water treatment systems
- Conveyor systems and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, 2.24 kW, Nameplate RPM 3500 rpm, Frame 90L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 7.2/3.6 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.76
- Package Width: 9.65
- Package Height: 10.63
- Package Weight: 42.00
Product info last updated on February 16, 2026 9:35am UTC
Category: Motors
