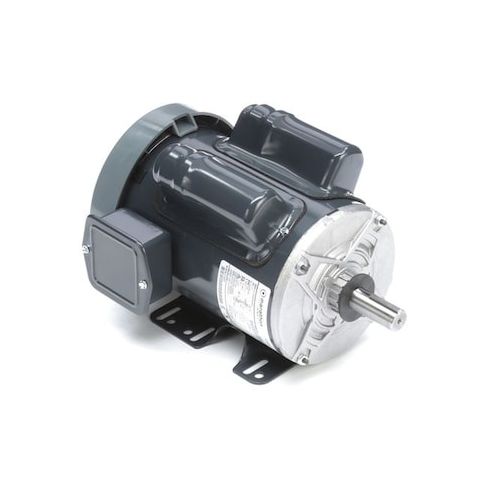

Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 145T Frame MPN:5KCR48WN0292
Capacitor-Start/Run General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 145T Frame
This 1.5 horsepower capacitor-start/run general purpose motor from Leeson is designed for a wide range of applications, including industrial and commercial use. Its single-phase motor design provides efficient power conversion, while its totally enclosed fan-cooled enclosure keeps the motor running smoothly in high-temperature environments. With a continuous duty cycle and a service factor of 1.15, this motor is ideal for applications where reliability and performance are crucial. Suitable for use in a variety of settings, including manufacturing, material handling, and HVAC systems, this motor offers a cost-effective solution for demanding industrial applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved cooling and reduced maintenance
- Continuous Duty Cycle capability for uninterrupted operation
- 60 Hz operation for compatibility with standard electrical grids
Top product applications:
- Pumps and blowers for industrial and commercial applications
- Fans and blowers for HVAC and ventilation systems
- Conveyors and other machinery for material handling and processing
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.5/7.3-7.1 A, 145T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.44
- Package Width: 10.19
- Package Height: 9.50
- Package Weight: 44.00
