Vector Motor, 3-Phase, 2HP, 230/460V MPN:145THTN8043

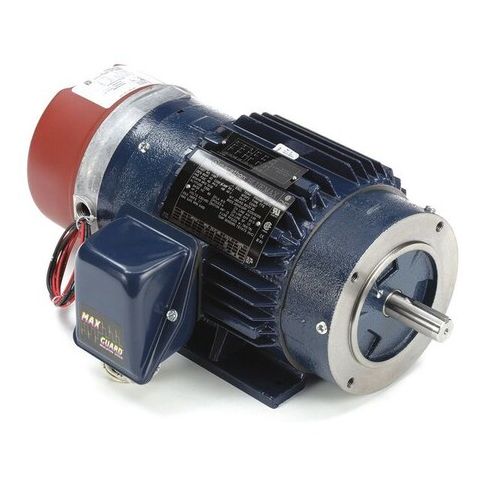

Vector Motor, 3-Phase, 2HP, 230/460V
This 2HP, 3-phase vector motor from Leeson is designed for heavy-duty applications requiring high torque and efficiency. With a nameplate RPM of 1,750 and a speed range of 2,000:1, it provides precise control and reliability. Ideal for use in industrial settings, such as manufacturing, material handling, and oil and gas operations, this motor delivers continuous duty cycle performance in temperatures up to 104°F. Its compact design and durable construction make it a versatile solution for applications requiring high power and low maintenance. Perfect for applications with demanding speed and torque requirements.
Top product features:
- Three-phase operation
- 145TC frame design
- Max. operating frequency of 120 Hz
Top product applications:
- Pumps and water treatment equipment
- Fans and blowers for industrial ventilation systems
- Conveyors and material handling systems
Vector Motor, Three Phase, Motor Design Three-Phase, 2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 6.0/3.0 A, 145TC Frame, Torque 10 ft-lb, Max. Speed 5,400 RPM, Speed Range 2,000:1, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Max. Operating Frequency 120 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.80
- Package Width: 13.30
- Package Height: 13.90
- Package Weight: 83.00
